Cable ACSR Pelican 477MCM
What is Pelican 477MCM ACSR Cable?

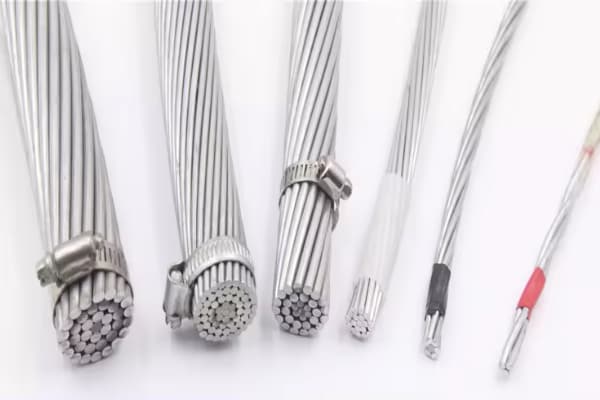

Pelican 477MCM ACSR cable is a specific type of cable used in electrical transmission applications. indicating that this cable is composed of aluminum conductors surrounded by a steel core. This design combines the high conductivity of aluminum with the mechanical resistance of steel, making it suitable for applications where both resistance and electrical conductivity are required.
Pelican 477MCM ACSR Cable is a robust, high capacity cable used in electrical transmission applications, combining aluminum conductors and a steel core to provide both electrical conductivity and mechanical strength.
ACSR Pelican 477MCM Cable Standard
ASTM B-230 aluminum wire, 1350-H19 for electrical purposes
ASTM B-231 Aluminum Conductors, concentric braids.
ASTM B-232 Aluminum Conductors, concentrically laid braids, reinforced with coated steel (ACSR)
ASTM B-341 Aluminum Coated Steel Core Wire for Aluminum Conductors, reinforced with steel (ACSR/AZ)
ASTM B-498 Zinc-Coated Steel Core Wire for Aluminum Conductors, reinforced with steel (ACSR)
Technical data of Pelican 477MCM ACSR Cable
| Key name | Area | Braiding and diameter | Approximate overall diameter | linear mass | ||||||
| Aluminum | Steel | Total | Aluminum | Steel | Aluminum | Steel | Total. | |||
| AWG or MCM | mm2 | mm2 | mm2 | mm | mm | mm | kg/km | kg/km | kg/km | |
| Pelican | 477.00 | 241.68 | 13.42 | 255.10 | 18/4.12 | 1/4.14 | 20.70 | 666.0 | 105.0 | 771.0 |
Design and installation of Pelican 477MCM
The design and installation of the Pelican 477MCM involves a meticulous approach to ensure its optimal performance in various applications.
The design process begins with a detailed analysis of the project requirements, including line length, the expected electrical load and environmental conditions. The appropriate cable type is selected, taking into account factors such as mechanical resistance, electrical conductivity and corrosion resistance.
Once the Pelican 477MCM has been selected, proceed with the installation. This involves preparing the land and placing the posts, towers or other support structures as required. The cable's aluminum and steel conductors are carefully attached to these supports using secure and durable fastening methods..
During the installation, Special attention is paid to proper cable tension to ensure optimal performance and prevent excessive buckling. Specialized tools and equipment are used to ensure the cable is positioned correctly and adjusted as necessary.
