Type 241.1 Mining Cable and 241.1 trailing Cable
What is 241.1 Cable and 241.1 trailing Cable?
Standard 241.1 Cable and 241.1 trailing Cable
AS/NZS 1802:2003: Electric cables—Reeling and trailing—For mining and general use (other than underground coal mining)
AS/NZS 1125: Conductors in insulated electric cables and flexible cords
AS/NZS 3808: Insulating and sheathing materials for electric cables
AS/NZS 5000.1: Electric cables—Polymeric insulated—For working voltages up to and including 0.6/1 (1.2) kV
Technical data sheet 241.1 Cables
NOMINAL CONDUCTOR AREA | STRAND SIZE | INSULATION THICKNESS | EARTH CONDUCTOR | PILOT CONDUCTOR | THICKNESS OF SHEATH INCLUDING SC PCP LAYER | NOMINAL OVERALL DIAMETER | NOMINAL WEIGHT | ||
STRAND SIZE | THICKNESS OF COVERING | STRAND SIZE | THICKNESS OF COVERING | ||||||
MM² | NO/MM | MM | NO/MM | MM | NO/MM | MM | MM | MM | KG/100M |
Type 241.1 | |||||||||
6 | 84/0.30 | 1.5 | 18/0.30 | 1.0 | 24/0.20 | 0.8 | 3.8 | 28.5 | 106 |
10 | 77/0.40 | 1.5 | 27/0.30 | 1.0 | 24/0.20 | 0.8 | 3.8 | 31.1 | 127 |
16 | 126/0.40 | 1.6 | 42/0.30 | 1.0 | 24/0.20 | 0.8 | 3.9 | 34.1 | 164 |
25 | 209/0.40 | 1.6 | 66/0.30 | 1.0 | 24/0.20 | 0.8 | 4.2 | 37.9 | 208 |
35 | 285/0.40 | 1.6 | 90/0.30 | 1.0 | 24/0.20 | 0.8 | 4.4 | 41.2 | 254 |
50 | 380/0.40 | 1.7 | 120/0.30 | 1.0 | 40/0.20 | 0.8 | 4.9 | 45.9 | 328 |
70 | 203/0.67 | 1.8 | 39/0.67 | 1.0 | 40/0.20 | 0.8 | 5.3 | 52.2 | 480 |
95 | 259/0.67 | 2.0 | 39/0.67 | 1.0 | 40/0.20 | 0.8 | 5.8 | 56.7 | 600 |
120 | 336/0.67 | 2.1 | 42/0.67 | 1.2 | 40/0.20 | 0.8 | 6.3 | 62.7 | 710 |
150 | 427/0.67 | 2.3 | 54/0.67 | 1.2 | 40/0.20 | 0.8 | 6.7 | 68.3 | 865 |
185 | 518/0.67 | 2.5 | 63/0.67 | 1.4 | 40/0.20 | 0.8 | 7.3 | 74.9 | 1030 |
240 | 672/0.67 | 2.8 | 77/0.67 | 1.4 | 40/0.20 | 0.8 | 8.0 | 83.3 | 1300 |
300 | 854/0.67 | 3.0 | 98/0.67 | 1.4 | 40/0.20 | 0.8 | 8.7 | 91.2 | 1600 |

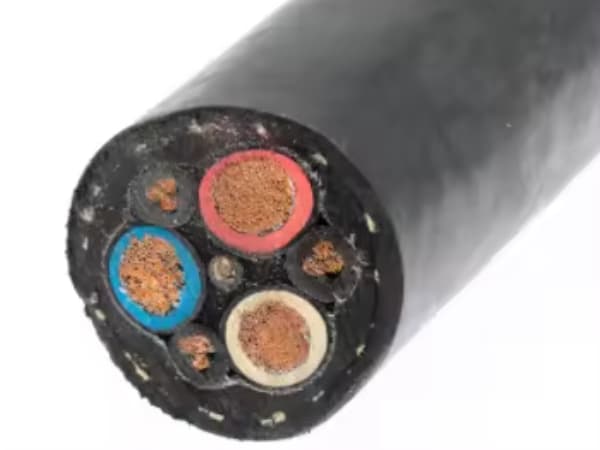

Structure 241.1 Cables
3× Conductors: Flexible, stranded, tinned annealed copper conductors.
Conductor Screen: 1.1/1.1kV: Polyester barrier tape.
3.3/3.3kV and above: Polyester barrier tape and extruded semiconductive tape.
Insulation: EPR (Ethylene Propylene Rubber).
Insulation Screen: Semiconductive tape.
Cradle Separator: Semiconductive PCP (Polychloroprene).
Overall Core Screen: Semiconductive PCP filling and covering.
3× Interstitial Earth Conductor:
Semiconductive PCP-insulated, flexible, stranded, tinned copper conductor.
1× Central Extensible Pilot: EPR-covered, flexible, stranded, tinned copper conductor.
Textile Reinforcement: Open-weave braid reinforcement.
Sheath: Heavy-duty PCP sheath.
Type 241.1 Mining Cable Manufacturer Low Price
We, Dosense Cable, are proud to be a leading manufacturer of Type 241.1 Mining Cable, offering high-quality products at competitive low prices. Our Type 241.1 Mining Cable is specifically designed to withstand the demanding conditions found in underground mining environments, ensuring reliability, durability, and safety.
As a reputable manufacturer, we prioritize the use of premium materials and advanced manufacturing techniques to ensure every cable meets or exceeds industry standards. Our cables are rigorously tested to ensure they can withstand the extreme temperatures, high voltage, and heavy loads commonly encountered in mining applications.
At Dosense Cable, we understand the importance of cost-effectiveness for our customers. That’s why we strive to offer Type 241.1 Mining Cable at the lowest possible price, without compromising on quality. Our goal is to provide you with reliable and affordable solutions for all your mining cable needs.
Contact us today to learn more about our Type 241.1 Mining Cable and how we can help you with your mining projects.
